GPI Racing Radiators review – 2014 KTM 250 SX-F

in Dirt Bikes, Reviews on 05/22/18

GPI Radiators review for my 2014 KTM 250 SX-F

GPI Racing RadiatorsA fitment review of GPI Racing radiators for my 2014 KTM 250 sx-f stock radiators.  These radiators and several others like it are all over eBay for most dirt bike models.  I’ve had 2 sets, one for my 2009 KX450 and these for my KTM.  After busting up my stock radiators on both bikes, I replaced both of them GPI Racing radiators I found on eBay.  They are significantly cheaper than a stock set, and I was worried about the quality of the set, but on both bikes, they have held up great.  I took some pictures replacing them when I replaced them on my KTM and I wanted to show the quality and the fitment for anyone thinking about buying them for their bikes.

GPI Racing seems to be the most popular brand on eBay.  They seem to have just recently started selling on Amazon.  I can’t tell if they are any better or worse then the other brands, they all look to be Chinese made and look the same to me.

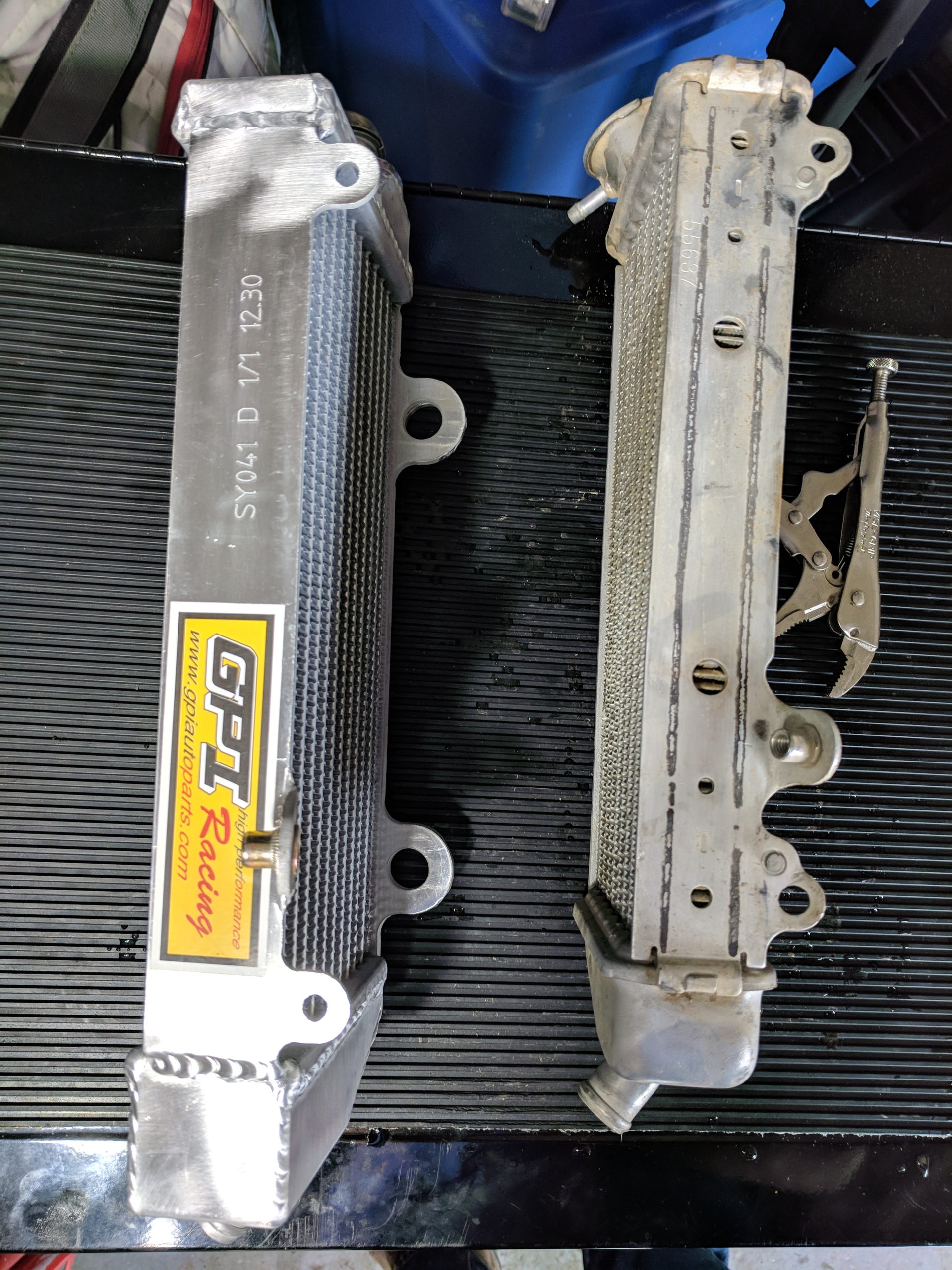

Stock side by side with GPI Radiators

The stock KTM radiators held up well, I was able to bend them straight after crushing them after a crash, but they developed a pinhole leak the last wreck and it was time to replace them.  The GPI Racing radiators say that they are oversized, and it shows on top and bottom of the radiators, they do have slightly wider sections, but it doesn’t appear like much.

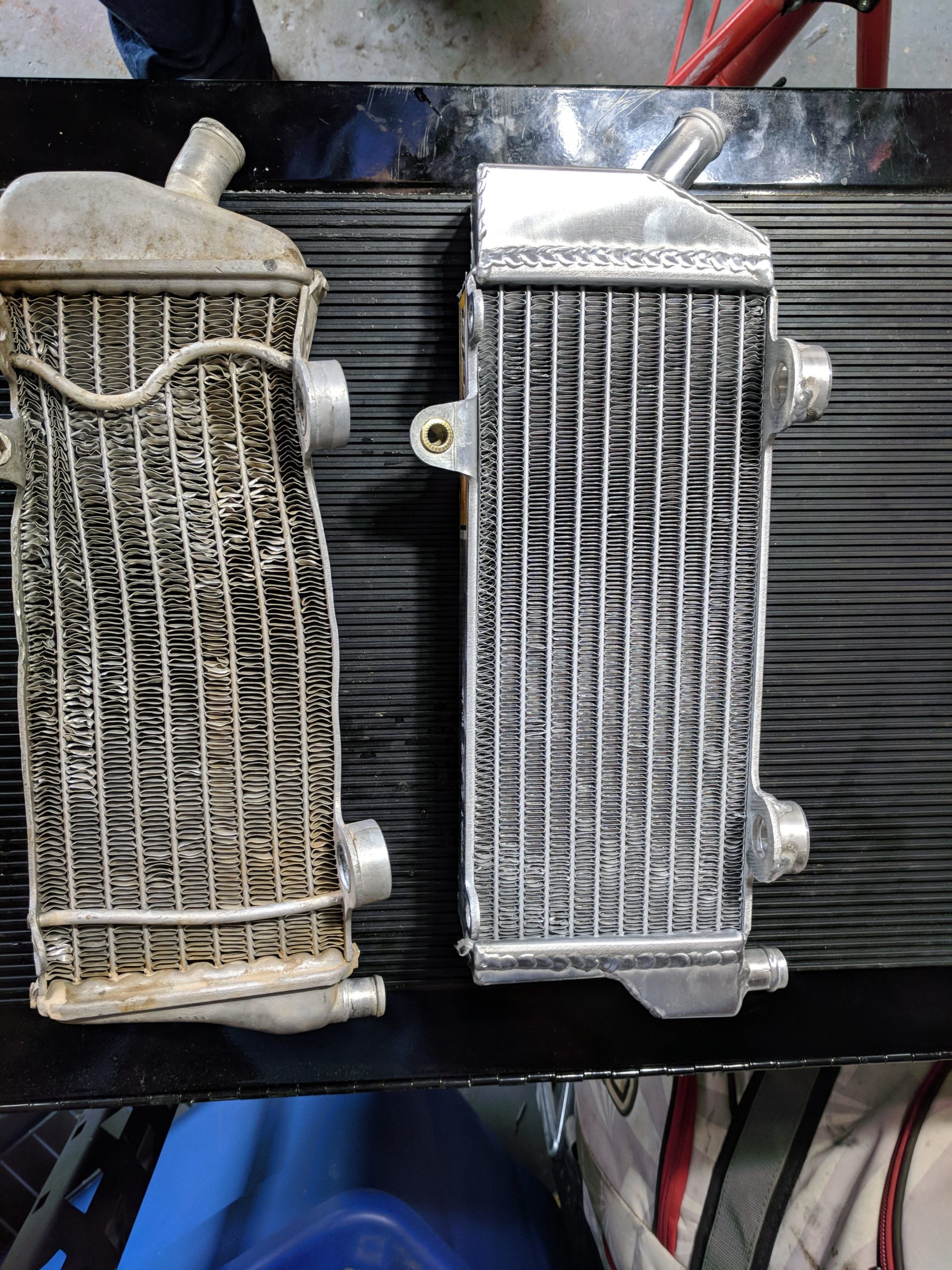

GPI Racing Radiators vs old
Stock crushed vs GPI

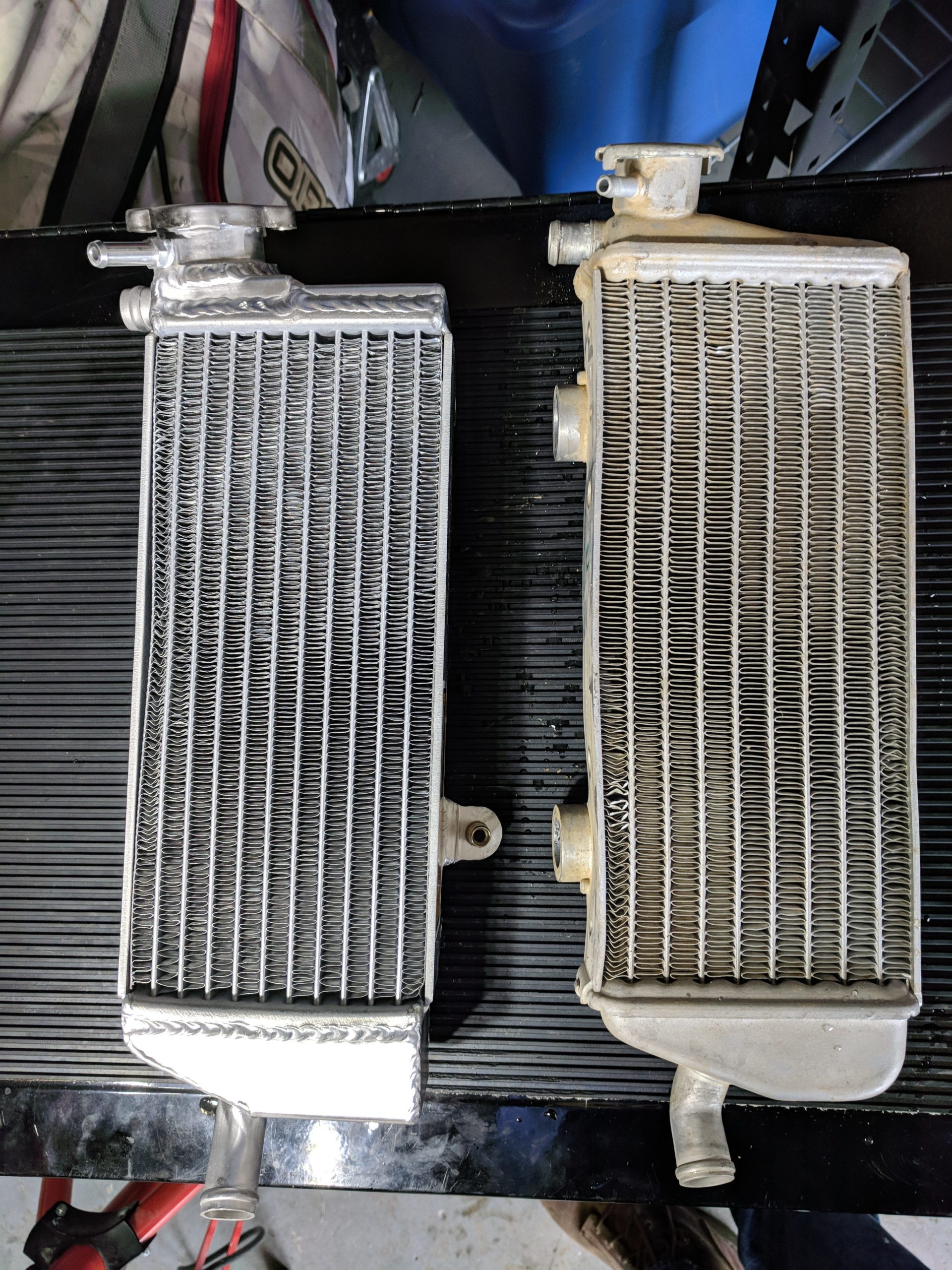

GPI vs KTM stock side by side
Stock vs GPI Racing Radiators

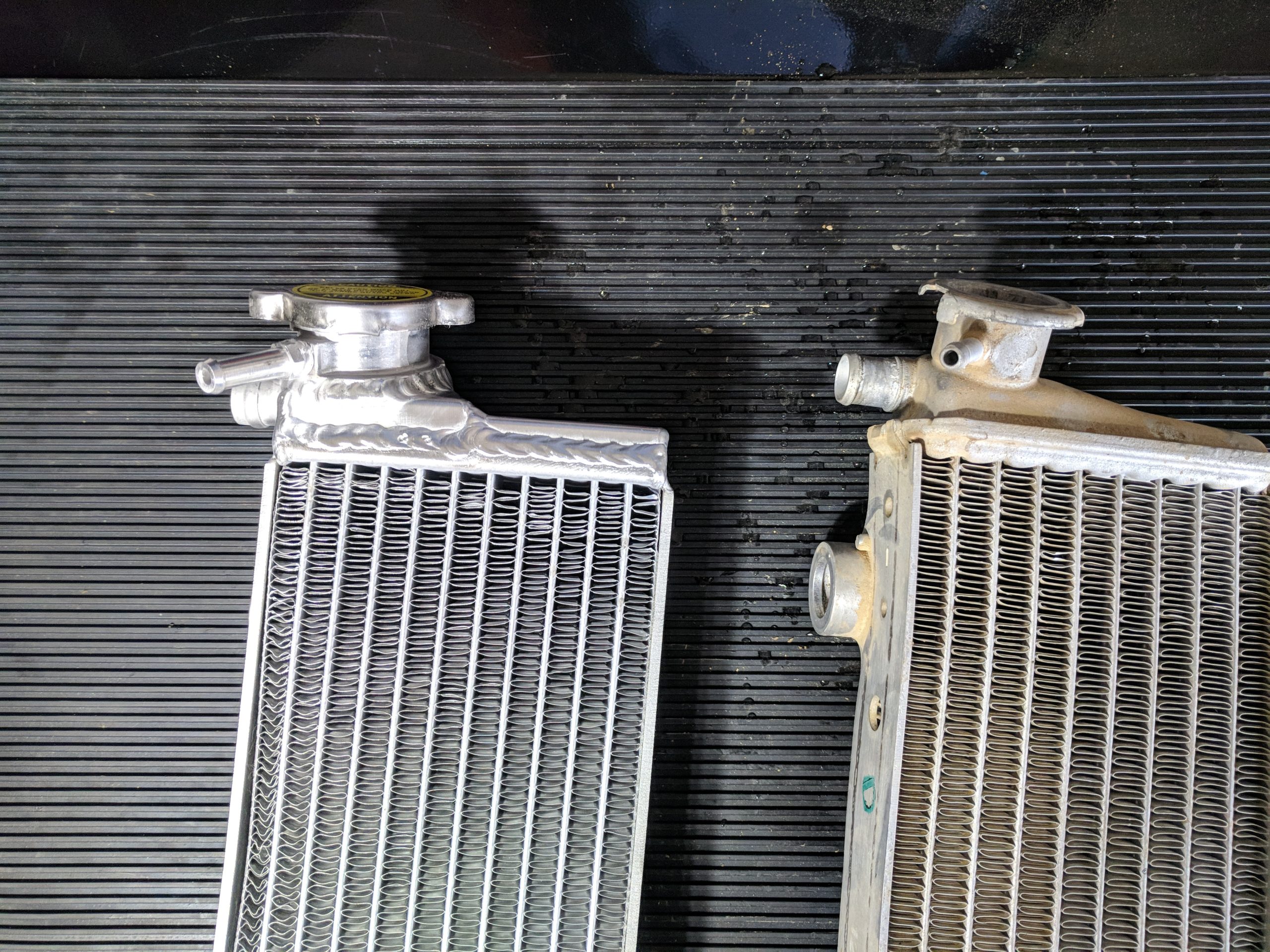

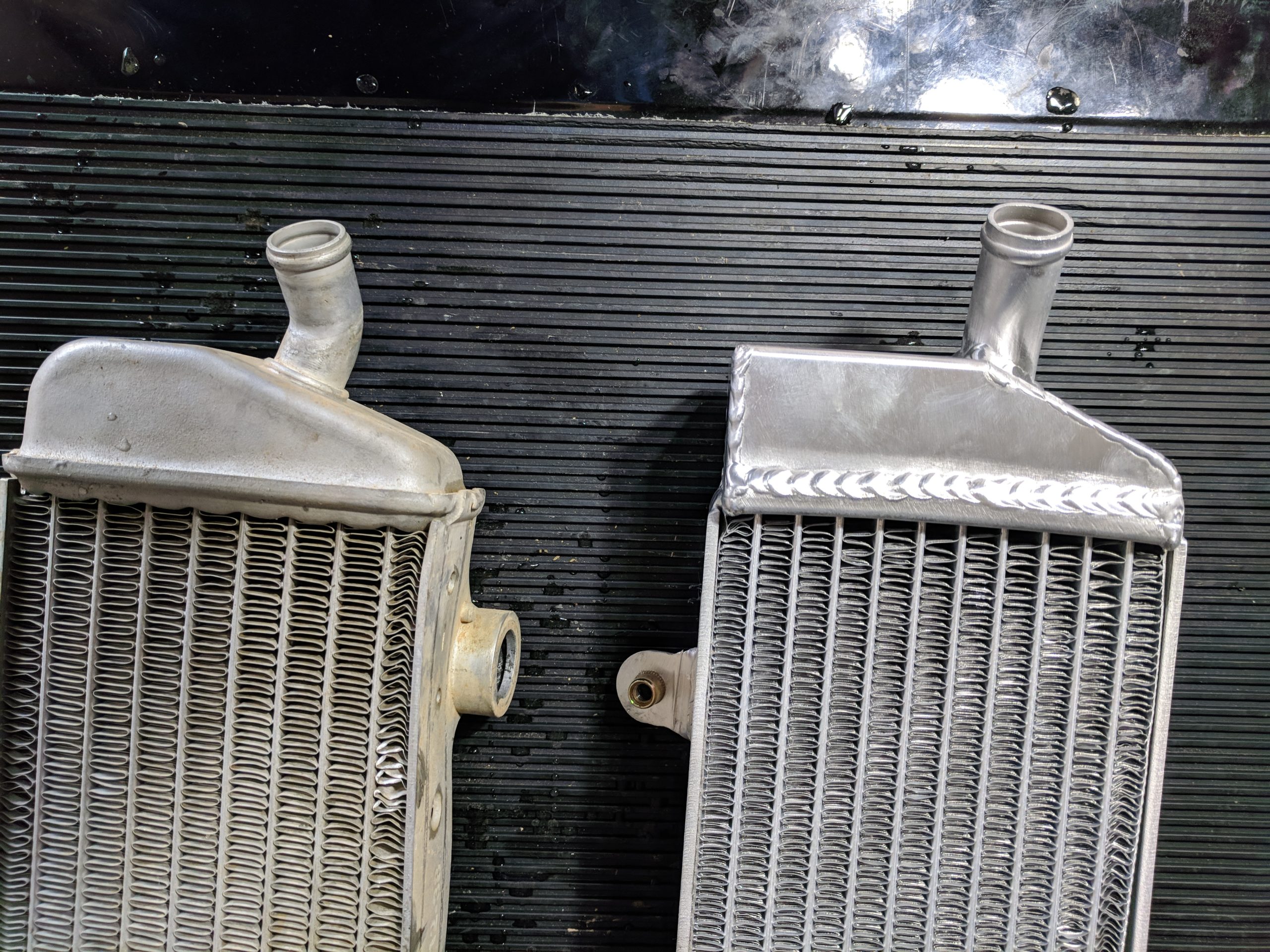

GPI Racing Radiators vs KTM stock top
GPI filler neck
GPI Racing vs KTM stock bottom
GPI extra size
GPI Racing Radiators vs KTM stock
Side view

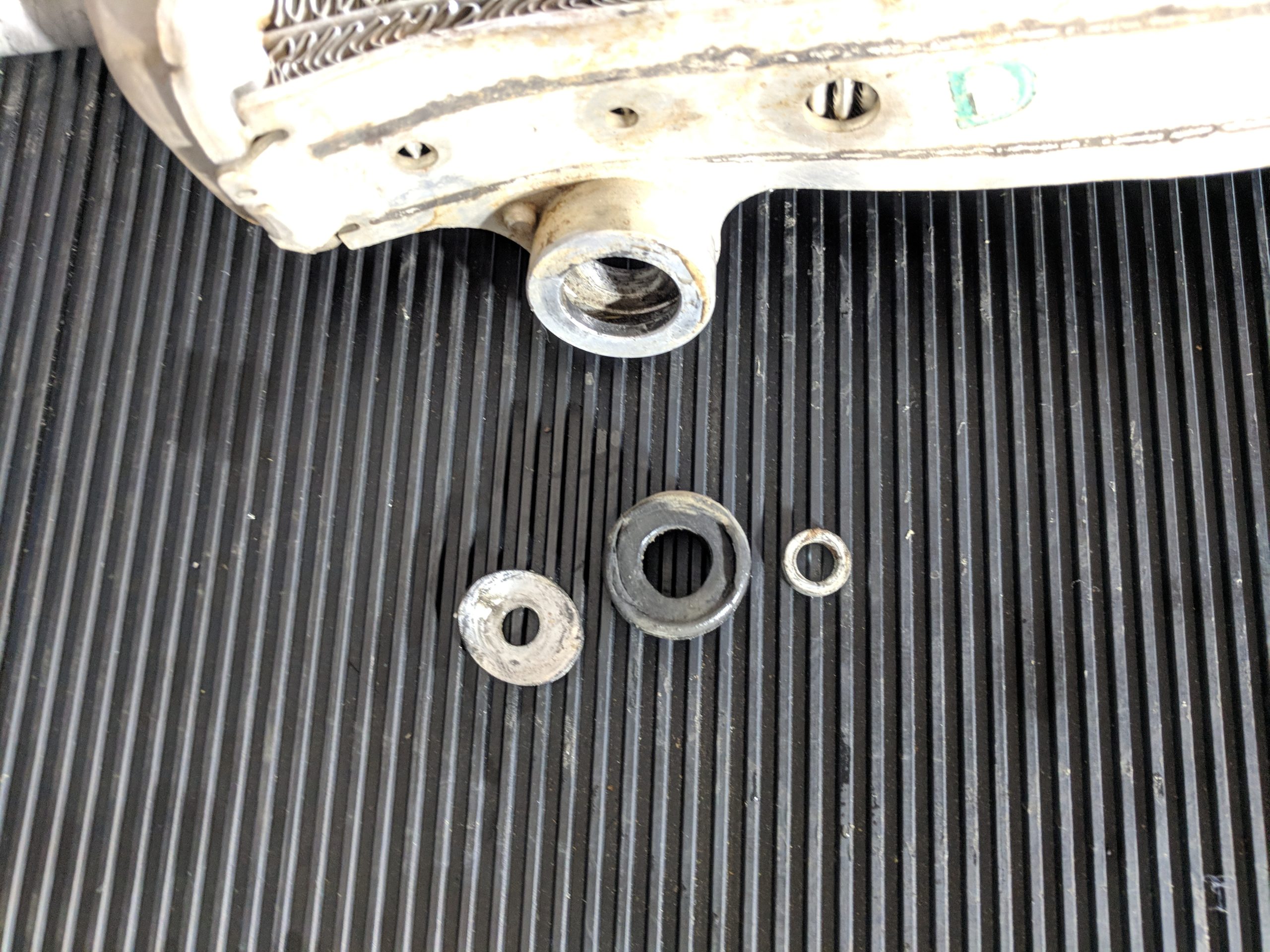

Stock radiator parts that need to be transferred

The GPI Racing radiators come with a new cap but you do need to transfer over the rubber mounting grommets from the stock radiators.  The KTMs have an oval metal washer that mounts in a slot on the side of the radiators.  I did have to sand these down a bit to fit in the GPIs.

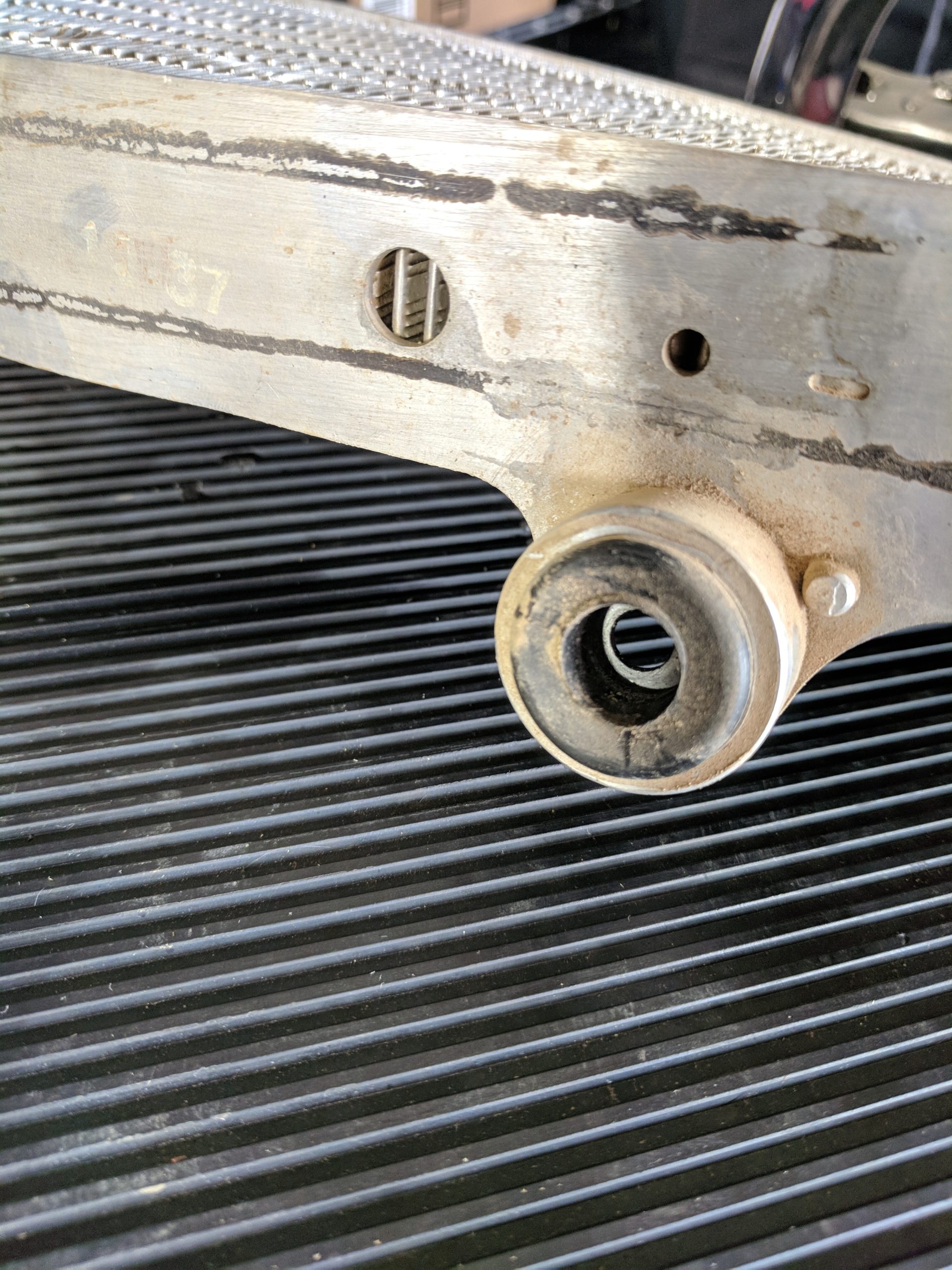

KTM stock rubber bushing
Stock rubber grommet

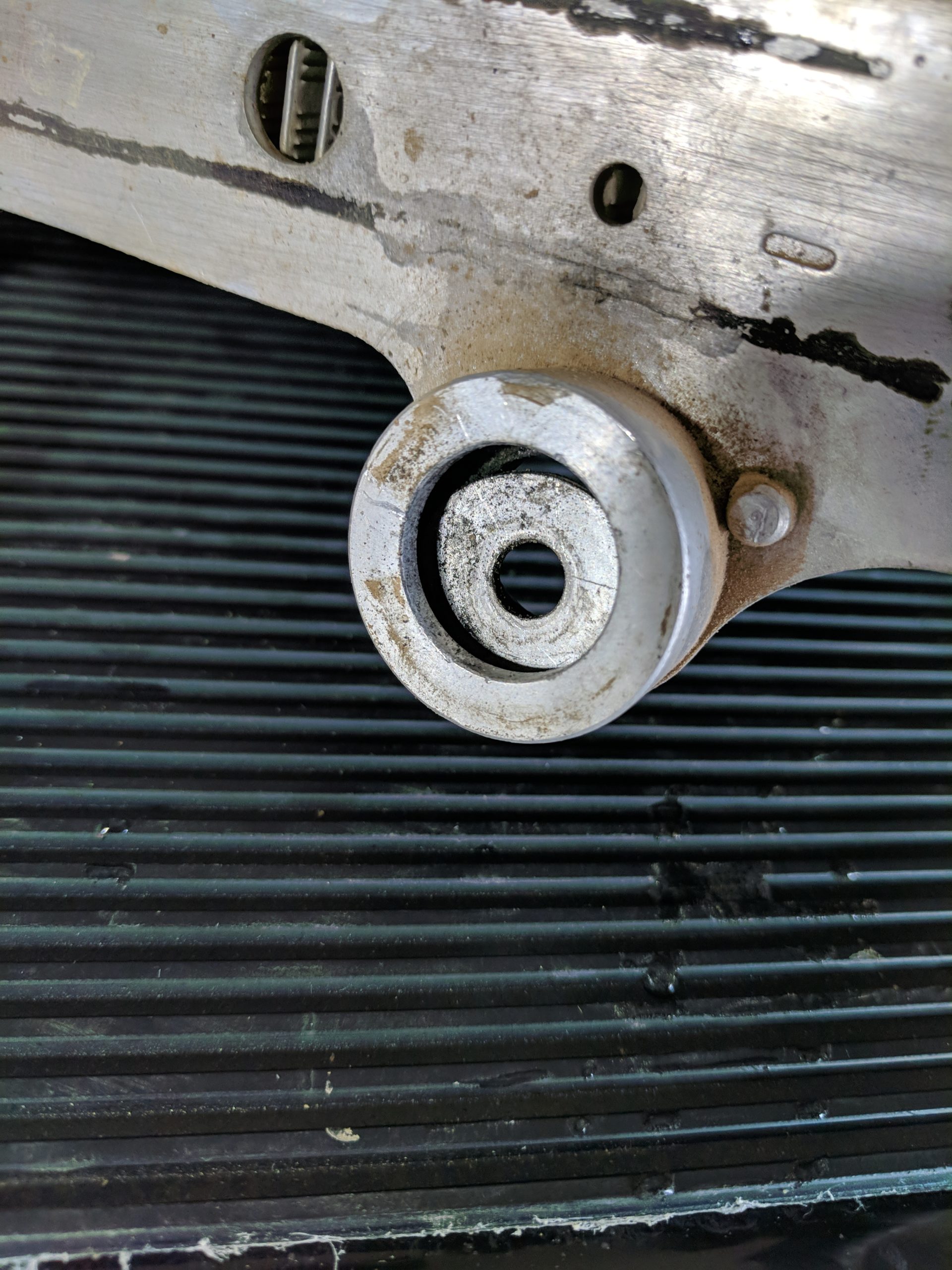

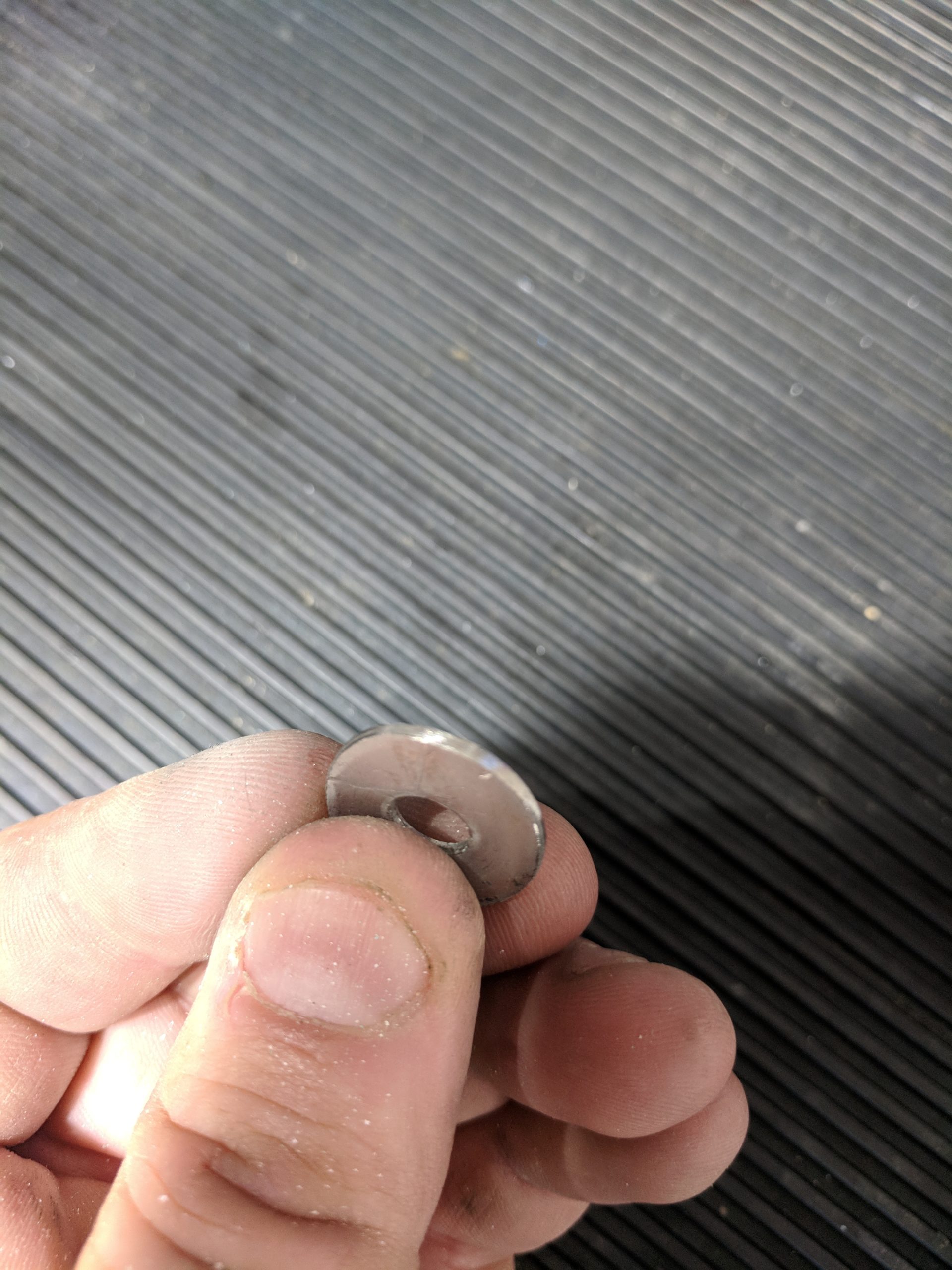

KTM radiator washer
Metal mounting washer
KTM stock rubber bushing washers
Stock bushing

GPI radiator washer sanded down
Sanding down washer for fitment

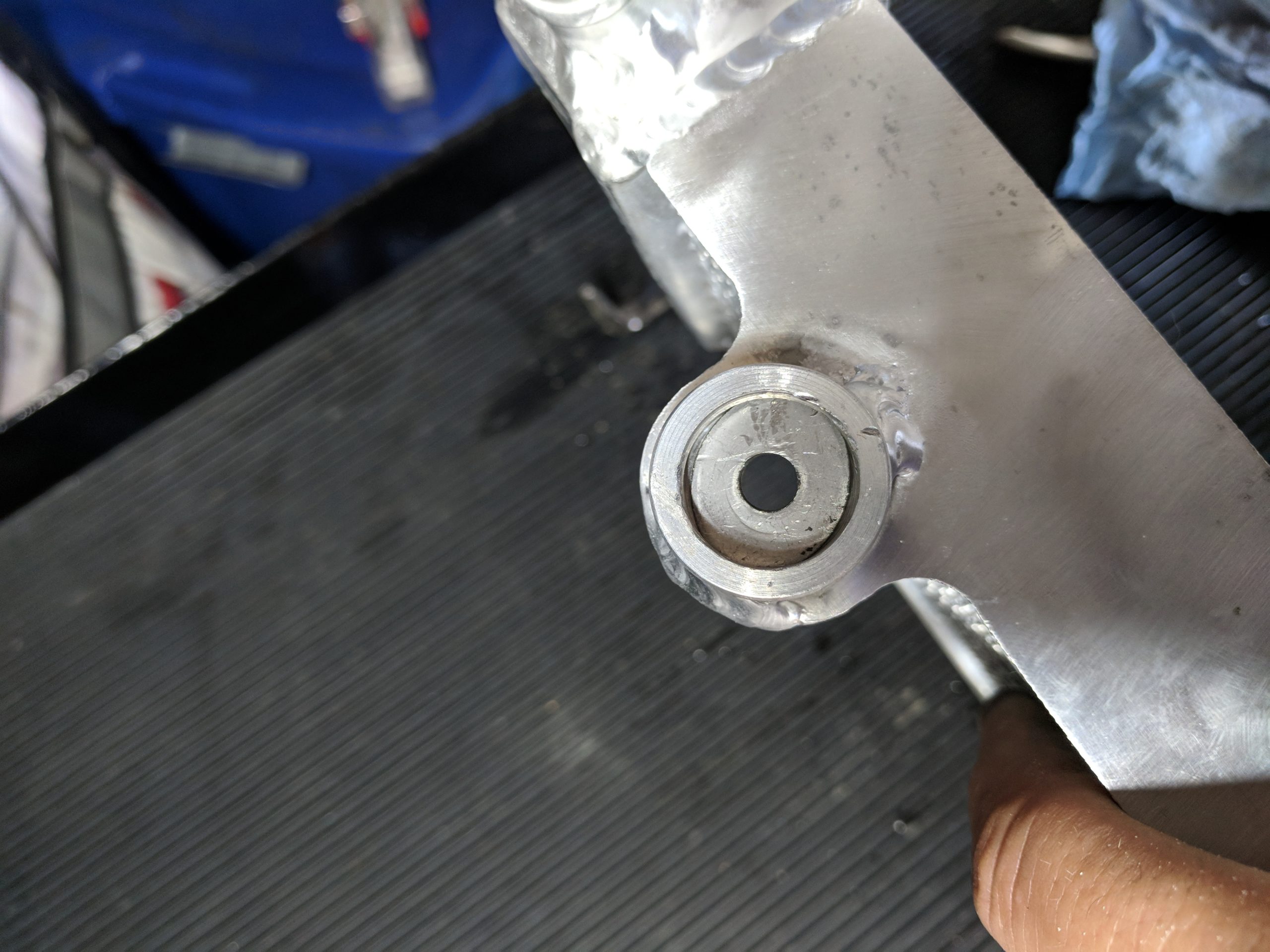

GPI Racing radiator washer
Washer in GPI

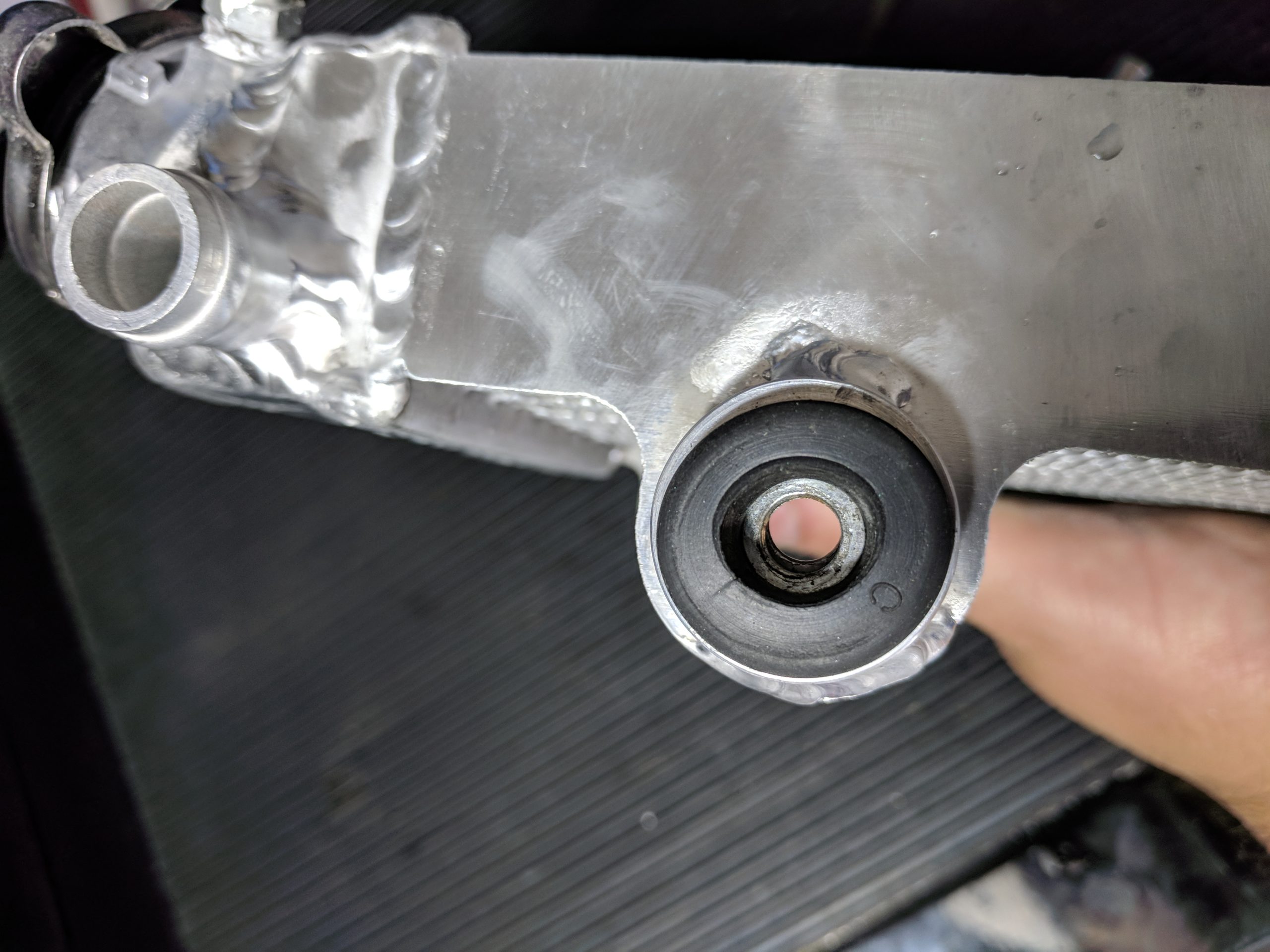

GPI Racing radiator bushing outside
Grommet in GPI

Mounting fitment

The GPI Racing radiators mounted up with no modifications needed.  The mounting holes and hose necks all lined up.  The only difference I found between the GPI Racing and the stock was the overflow nipple on the filler cap. The nipple was longer on the GPI Racing radiators, but it didn’t interfere with anything when mounted them up.

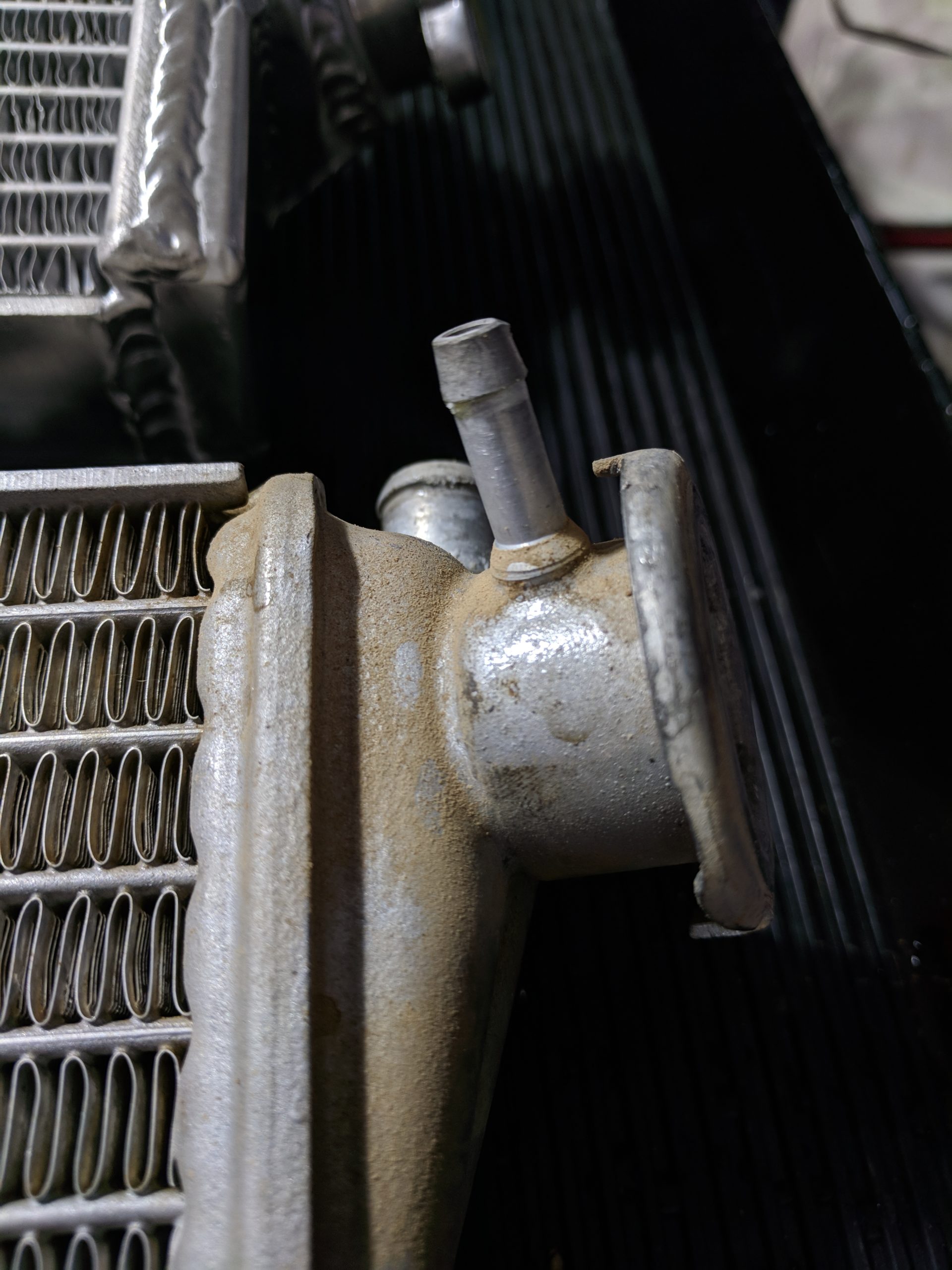

KTM stock overflow
Stock overflow nipple

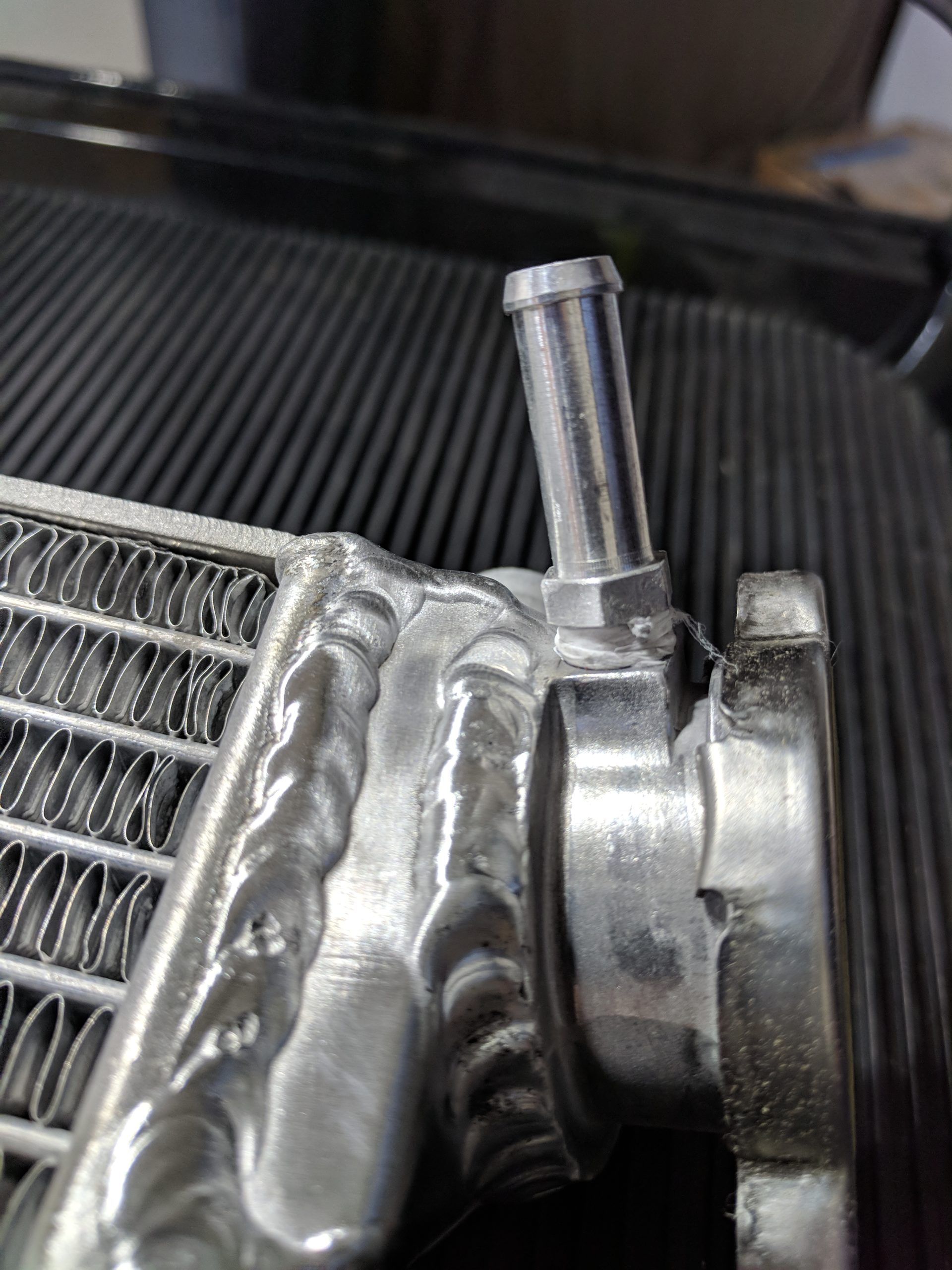

GPI Racing radiator overflow
GPI overflow nipple

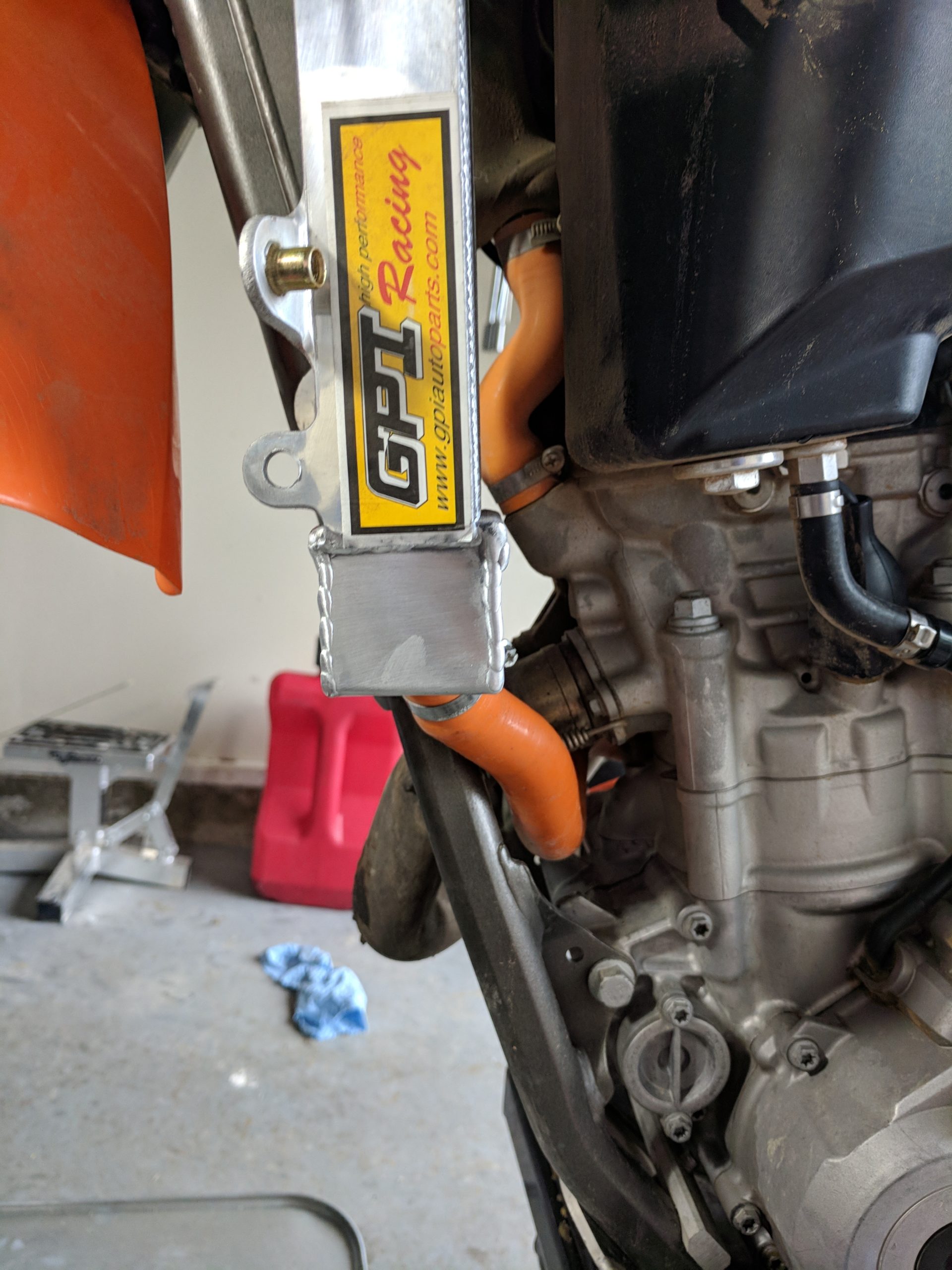

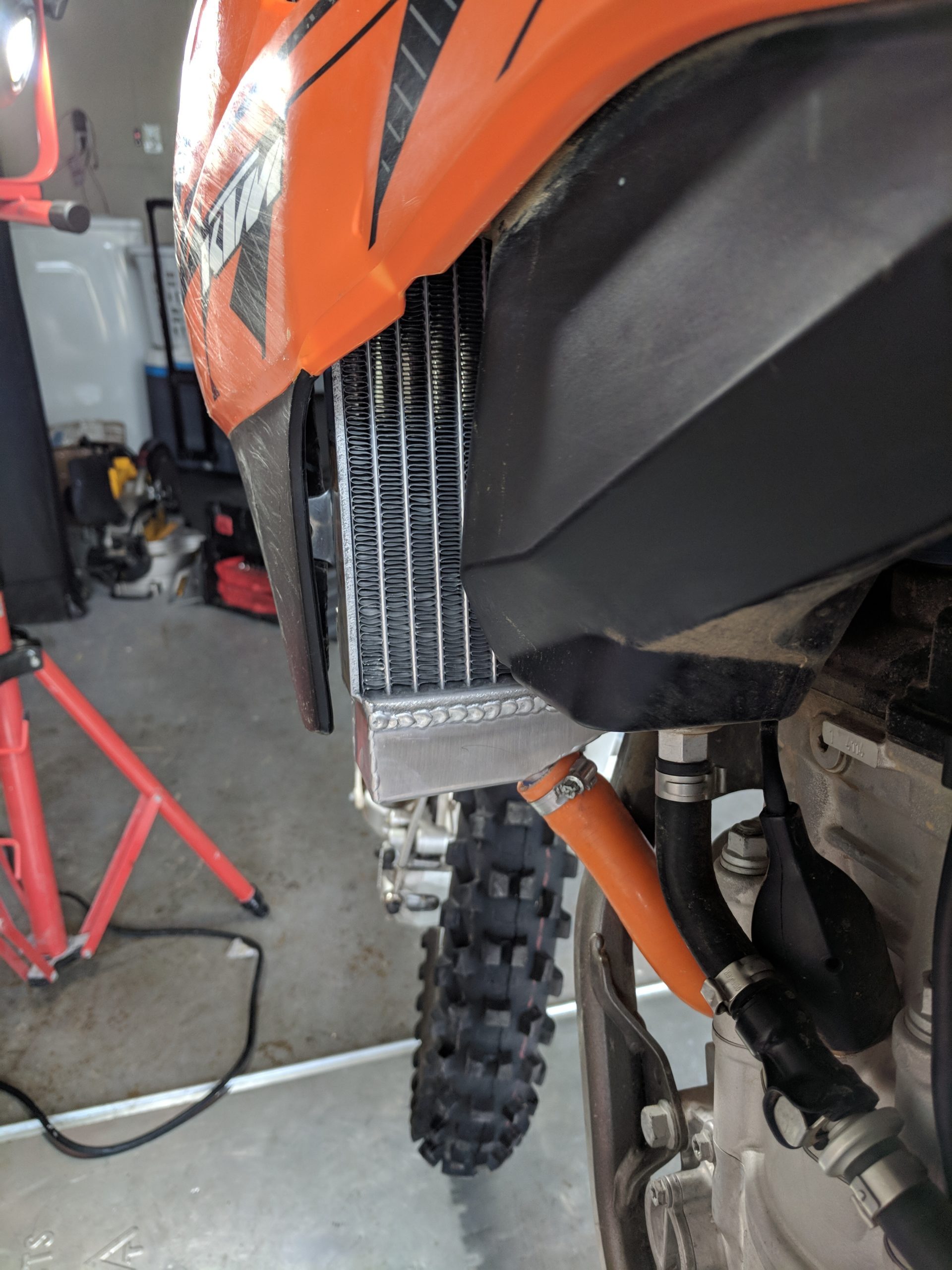

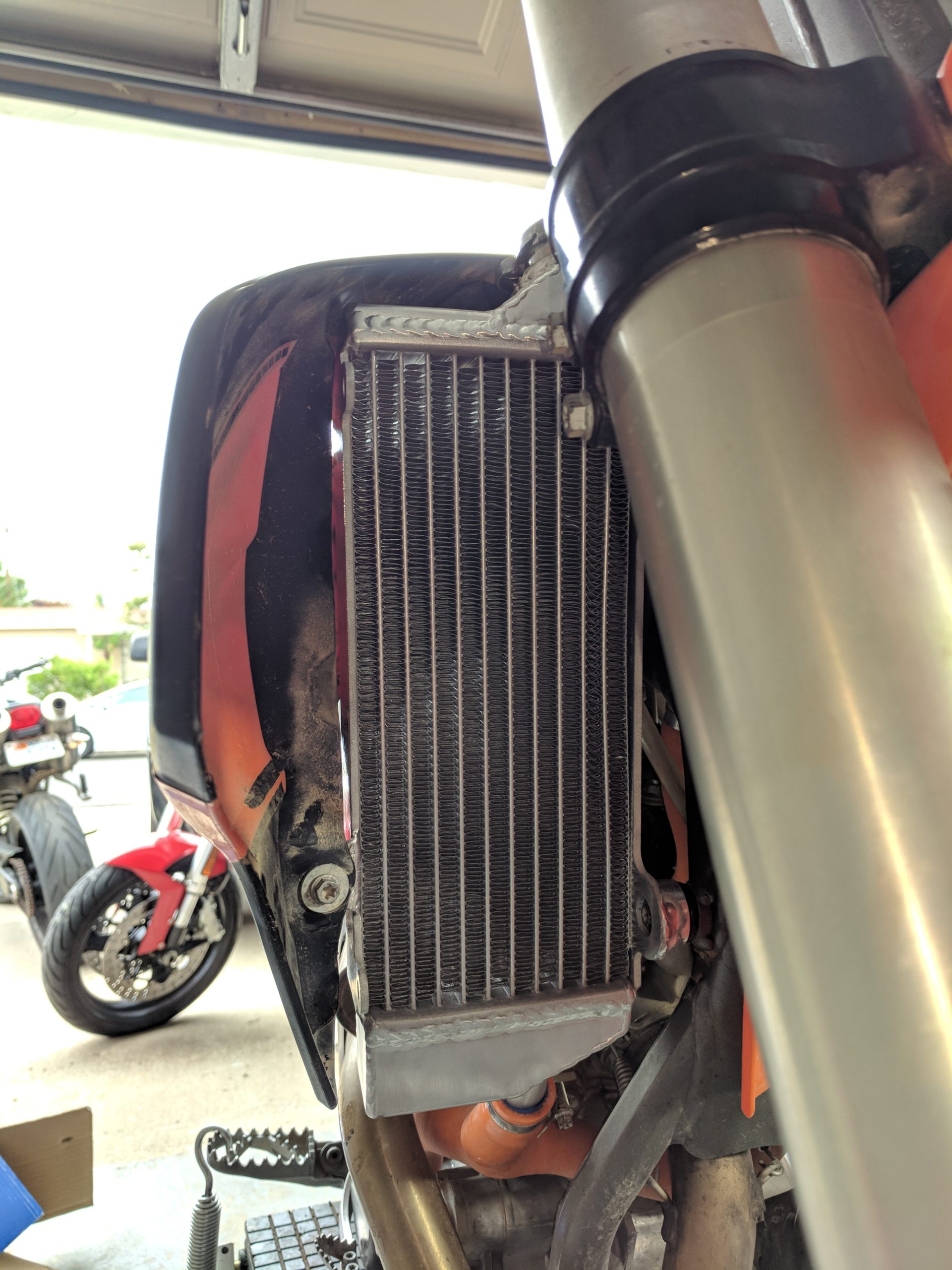

GPI Racing radiator KTM 250 sxf front fitment upper right
Left side fitment
GPI Racing radiator KTM 250 sxf front fitment lower right
Left side view

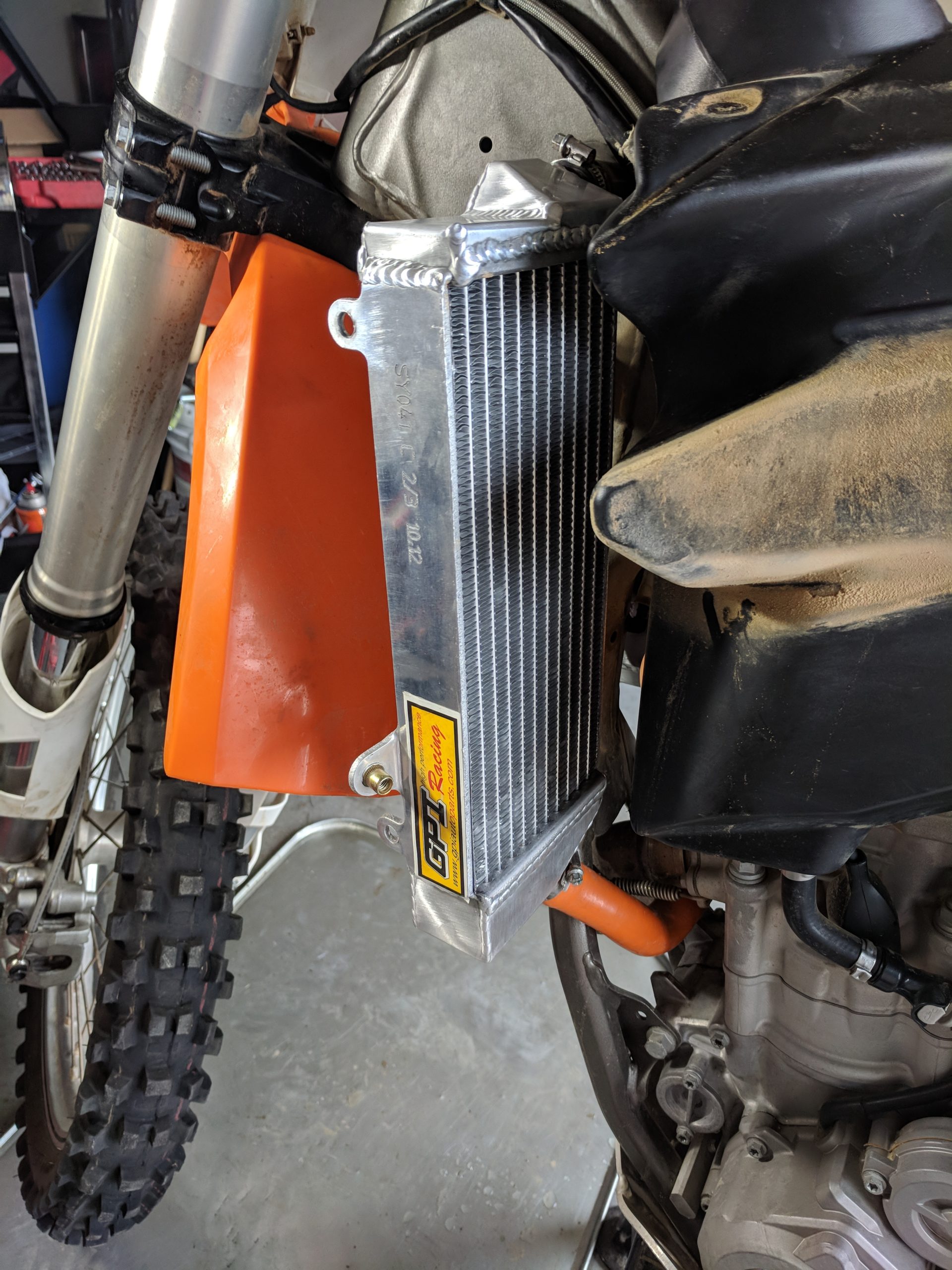

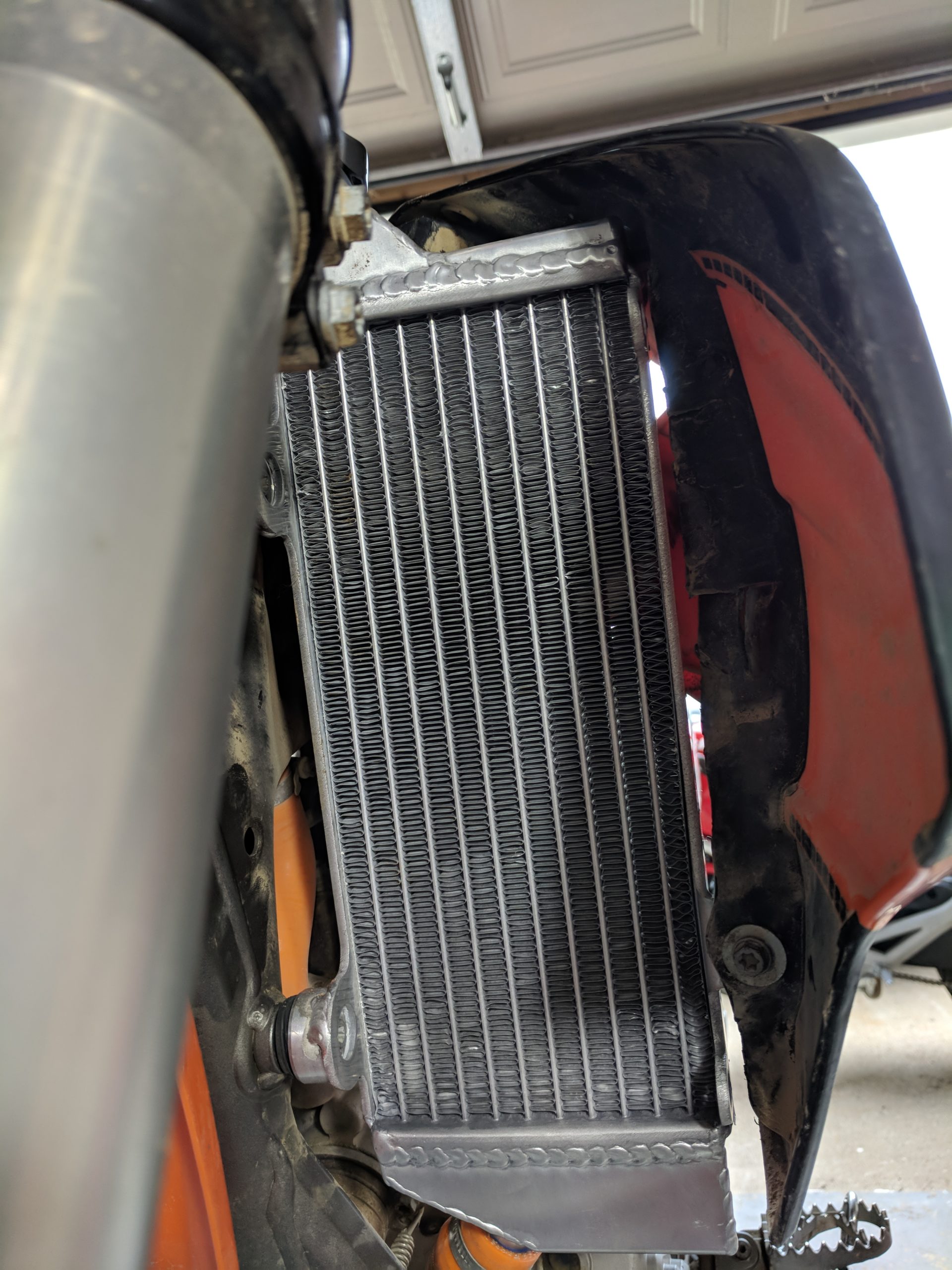

GPI Racing radiator KTM 250 sxf front fitment upper
Right side fitment
GPI Racing radiator KTM 250 sxf front fitment lower
Right side view

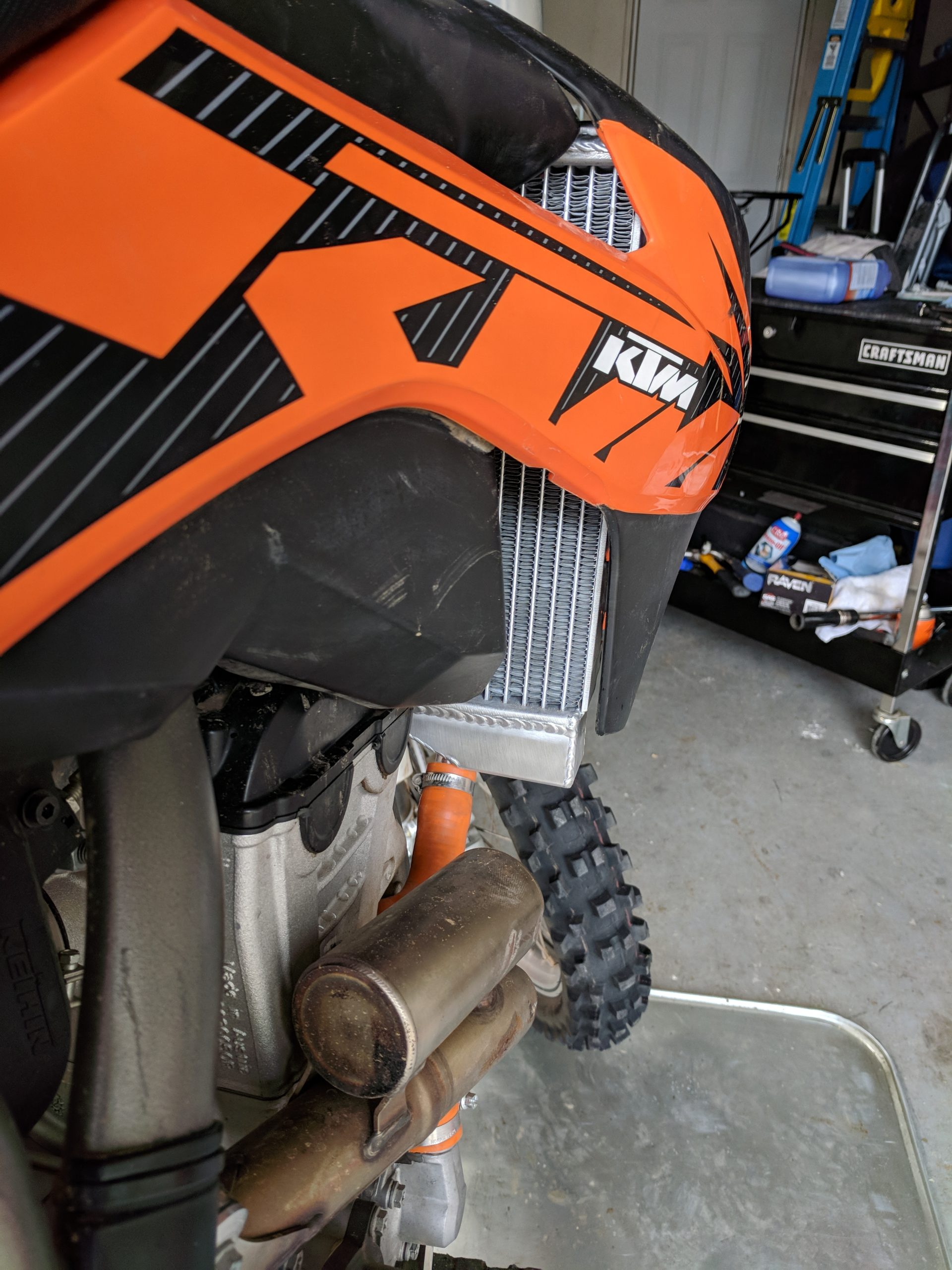

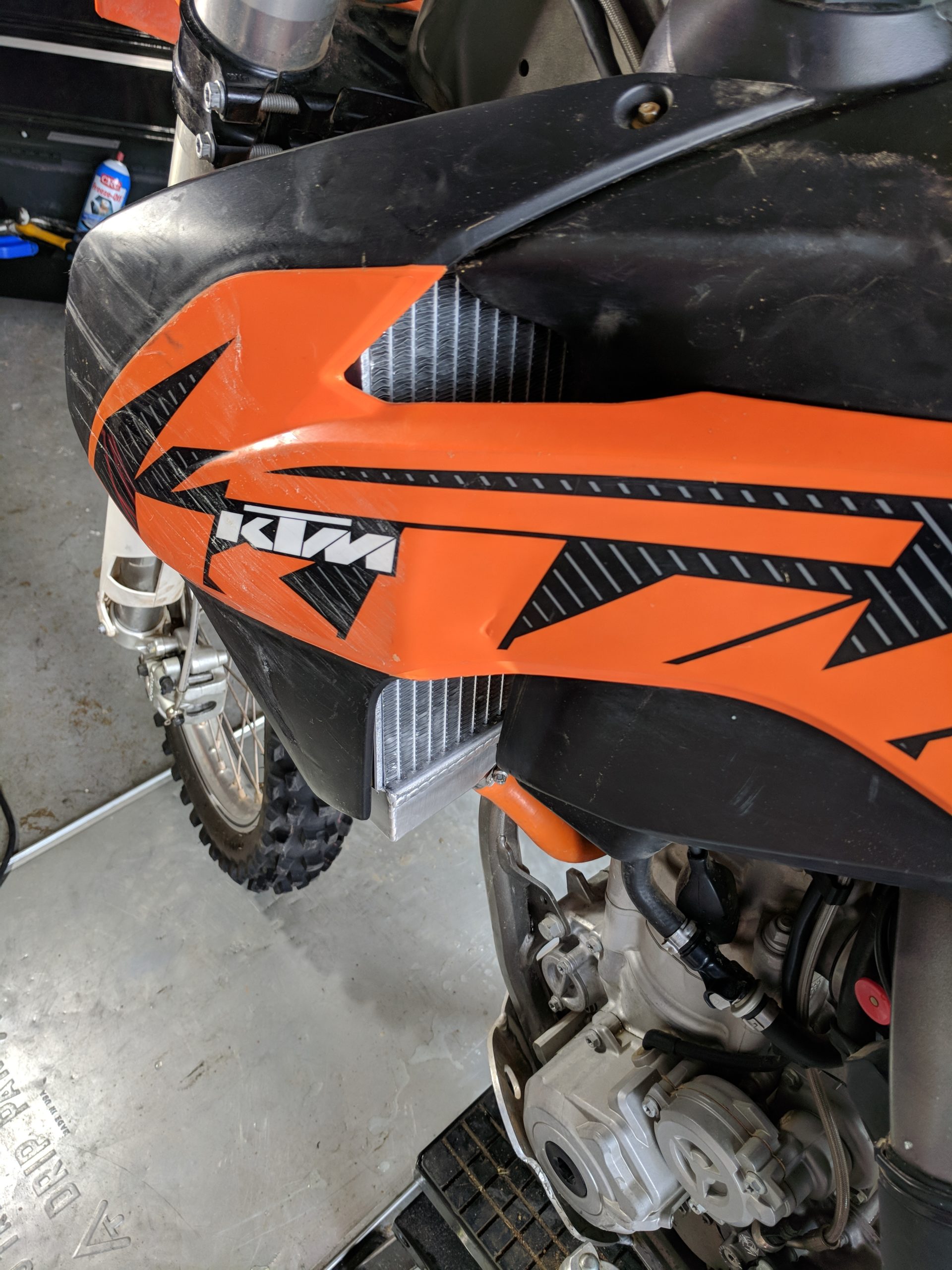

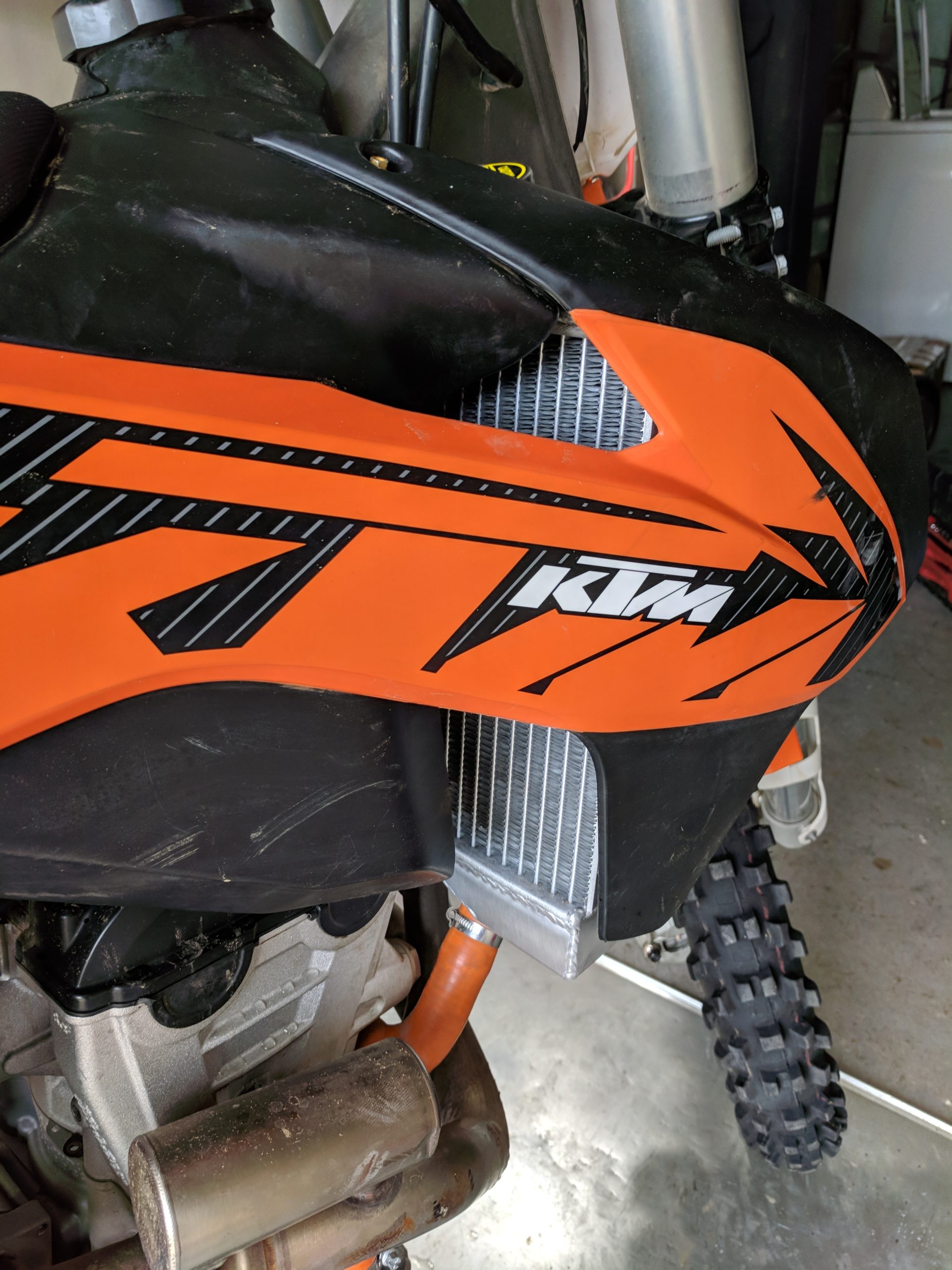

Shroud fitment

The shrouds fit right on the GPI Racing radiators and the mounting holes lined up.

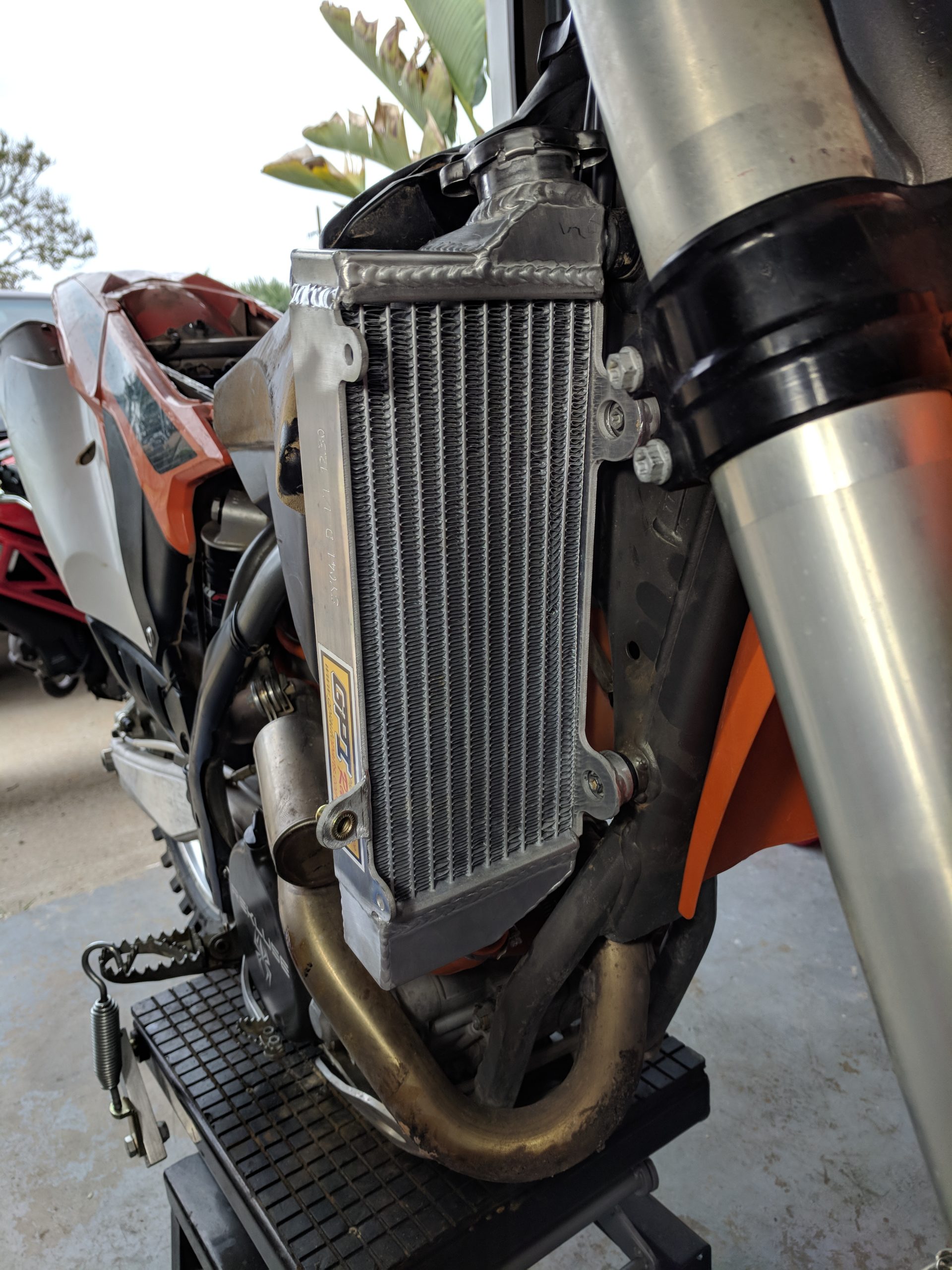

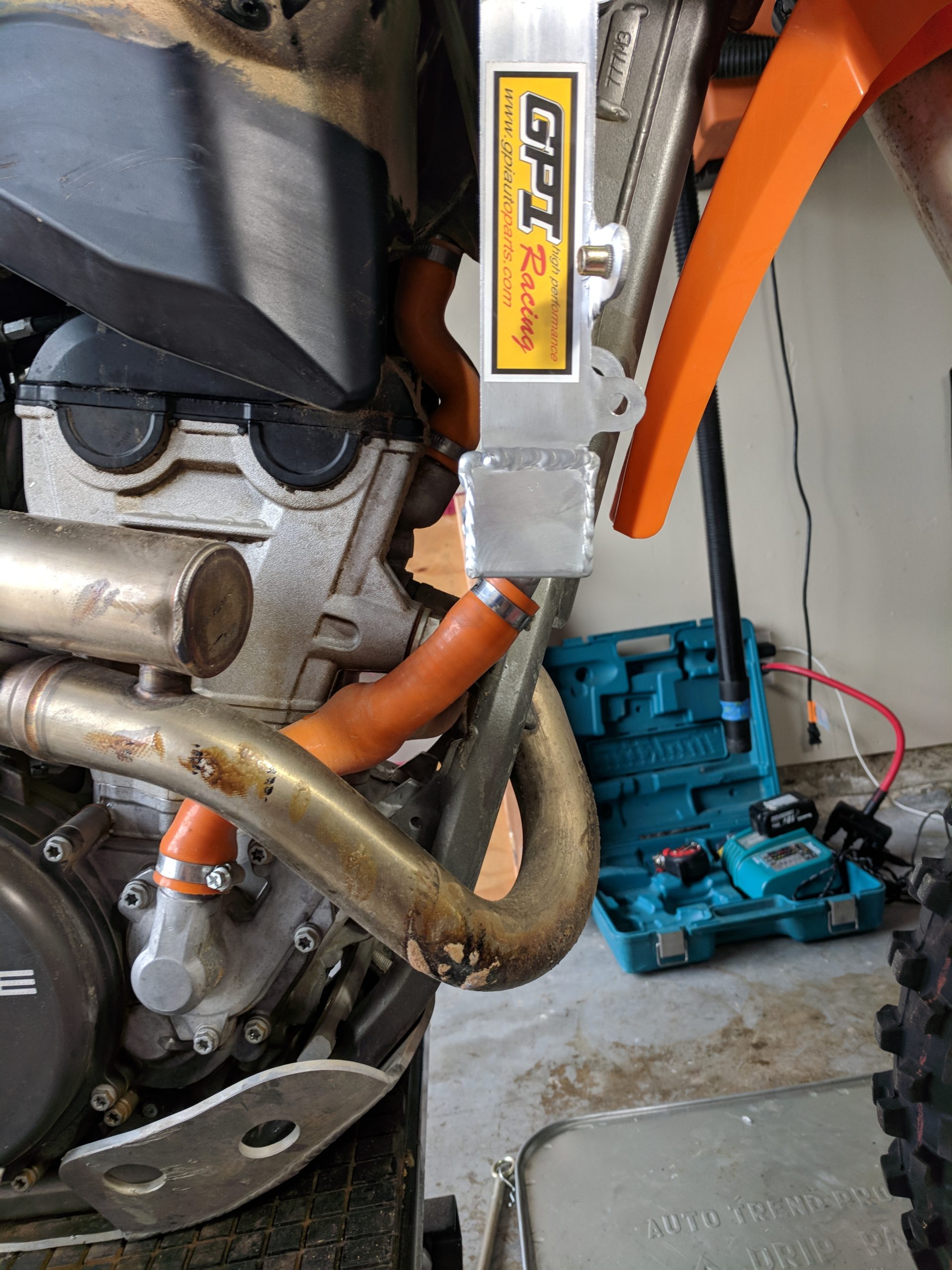

GPI Racing radiator KTM 250 sxf right side
GPI Racing radiator KTM 250 sxf left side
GPI Racing radiator KTM 250 sxf left side lower
GPI Racing radiator KTM 250 sxf right side lower
GPI Racing radiator KTM 250 sxf front fitment right
GPI Racing radiator KTM 250 sxf front fitment left

Overall

This is my second set of these radiators and I haven’t had any problems each time.  While I had the coolant drained, I refilled with Engine Ice.  I didn’t have overheating problems with the stock radiators so I can’t comment on how much cooler the engine runs.  As for strength and fitment wise, the GPI Racing radiators are a cheaper alternative the stock KTM radiators.

Engine Ice Coolant

















4 Comments

« Fuel Station Nozzle Leak Repair for Toy Haulers and RVs
WPS Featherweight Lithium Battery Review »

Comments

  1. Dieter says

    June 16, 2019 at 4:35 pm

    GPI racing or all other aluminium cheap radiators from ebay/amazon…. These are shit radiators, they leak from the moment when they are installed. No reply when contacting them. They are not made the same as oem considering flow, pressure, and cooling requirements. Cut them open and you see the difference in build quality.

    Reply
    • HH_Admin says

      June 26, 2019 at 6:41 am

      I’ve had good luck with the 2 times I bought them. The last GPI radiators I installed was on a 2009 KX450 and they lasted through riding in Baha Mexico and doing motocross. I guess they can be hit or miss, I’ve never had a problem though.

      Reply
    • Travis Davis says

      August 28, 2019 at 5:32 pm

      Have you ever cut them open and compared them to stock? What was the difference? Do you have pictures?

      Reply
      • HH_Admin says

        October 9, 2019 at 8:13 pm

        No, I didn’t cut them open. If I had a stock and GPI busted pair I would do it, but the GPI’s I have run never failed me.
